National Geographic Explorer Retrofit

This retrofit job was performed in Bremerhaven during a dry-dock stop in April 2016

Vessel Information:
Built: 1982
Owner: National Geographic Exploration
Segment: Cruise - Passenger

This retrofit job was performed in Bremerhaven during a dry-dock stop in April 2016. Old Autronica - KM-2 alarm system were replaced with new Høglund Solutions:

Integrated Automation System (IAS) with Cargo Handling
Ship Performance Monitor (SPM)
GMR Playback
Høglund Remote Control, for remote service and support

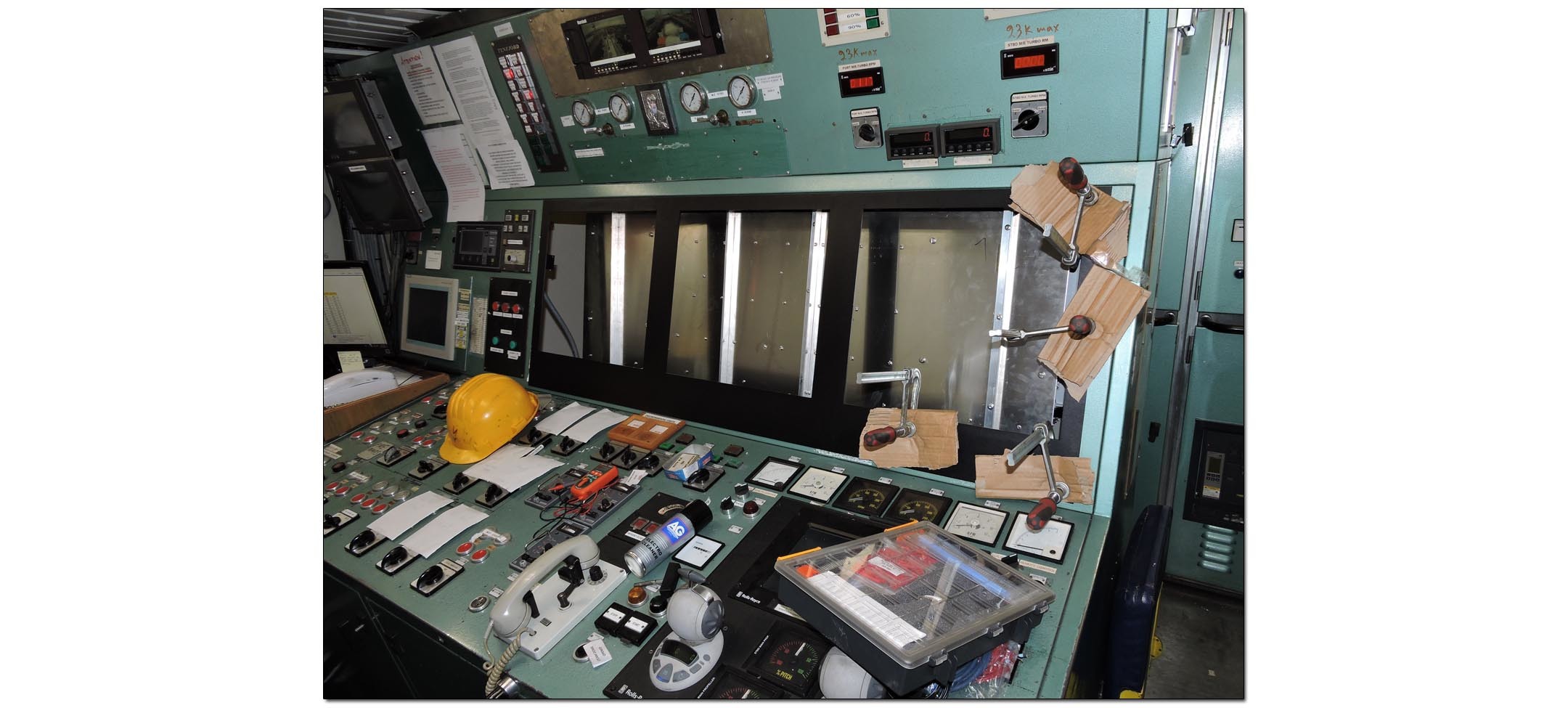

Old Autronica alarm panel

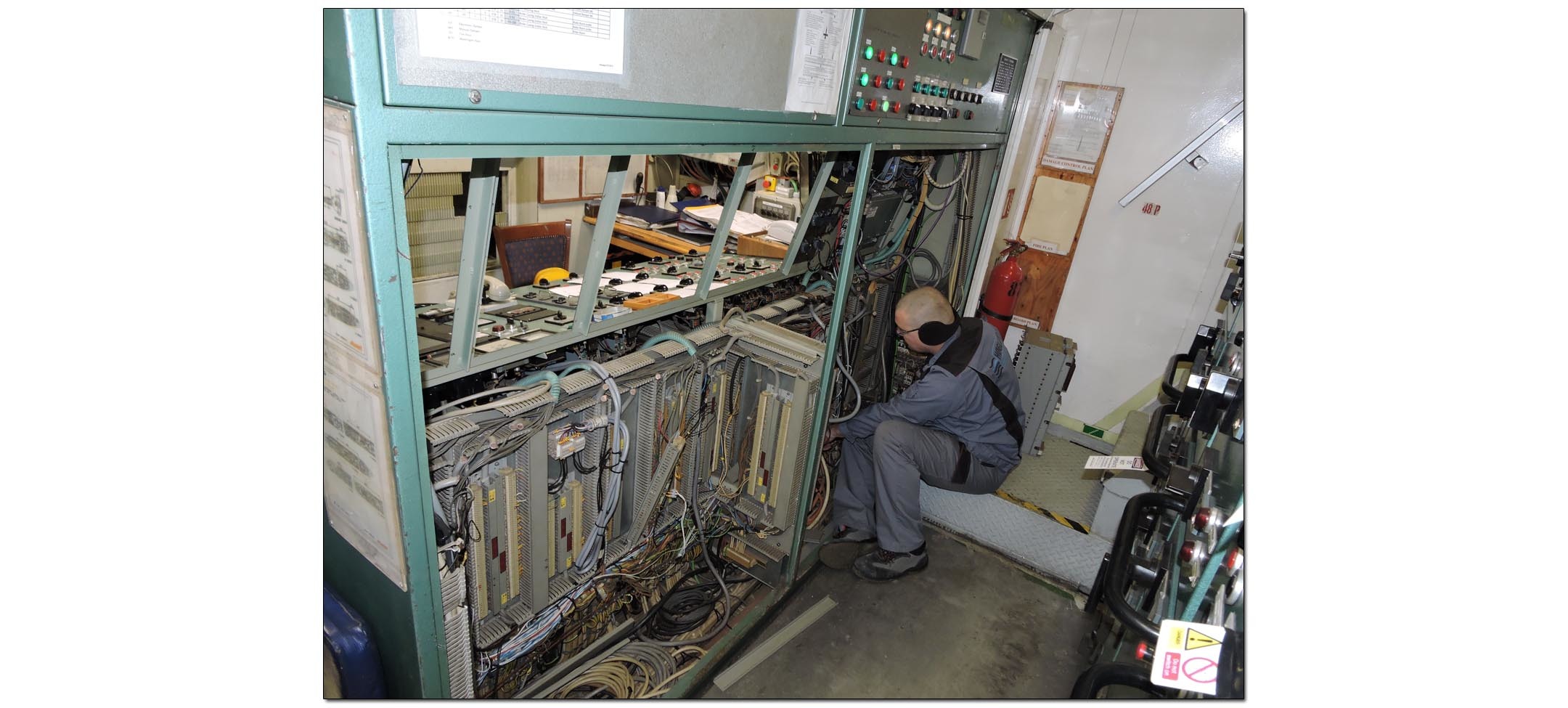

Old alarm panel removed

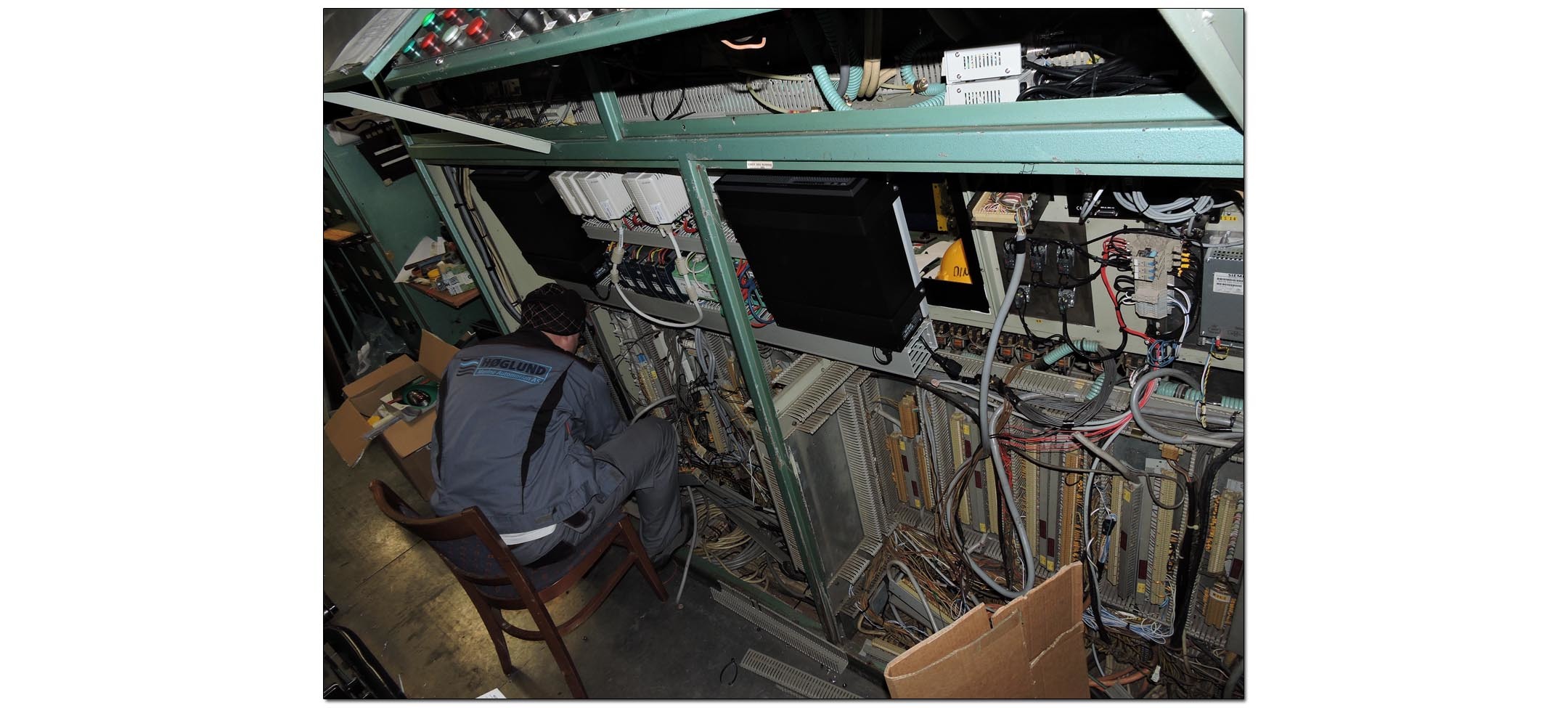

Old connection terminals being replaced with S800 hardware

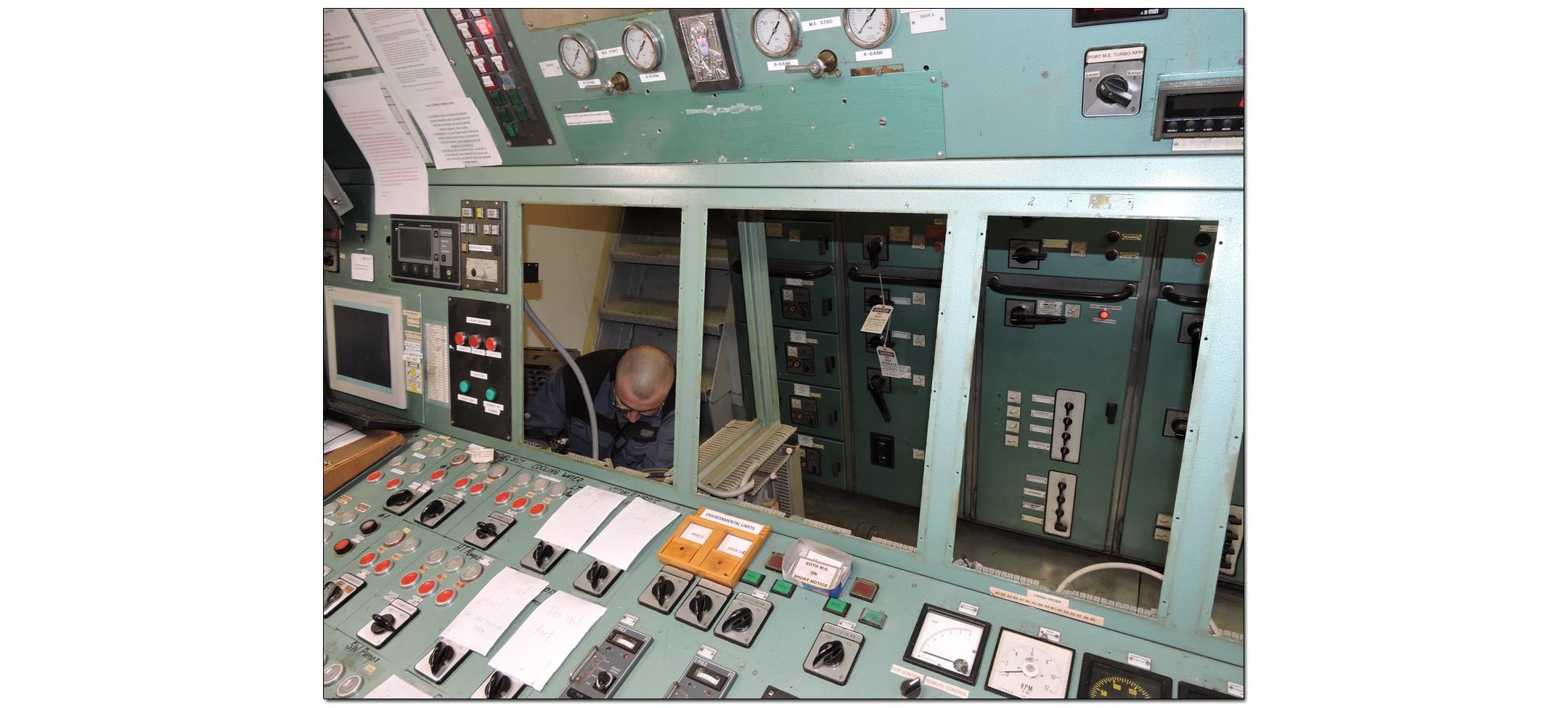

New mounting plate for Høglund Monitors

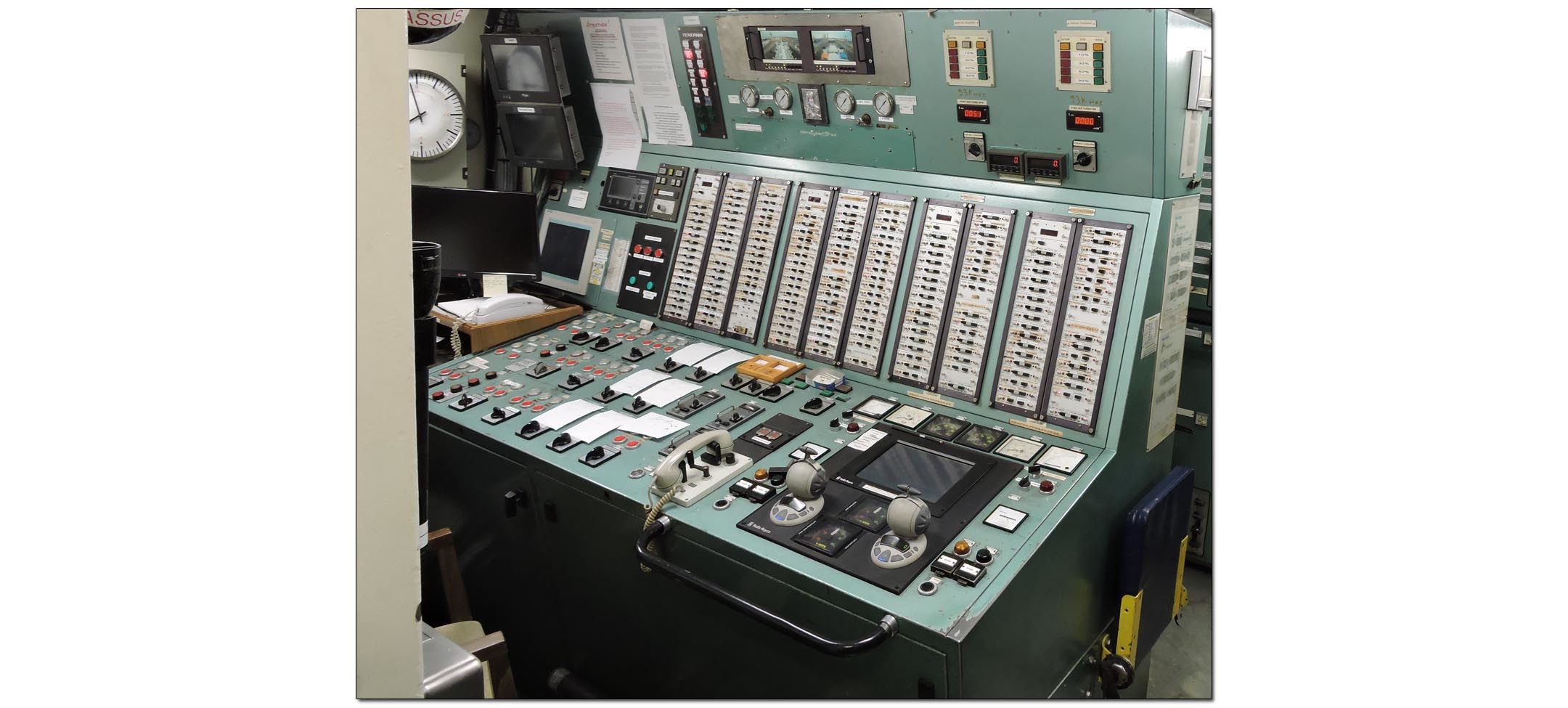

New Høglund operation stations

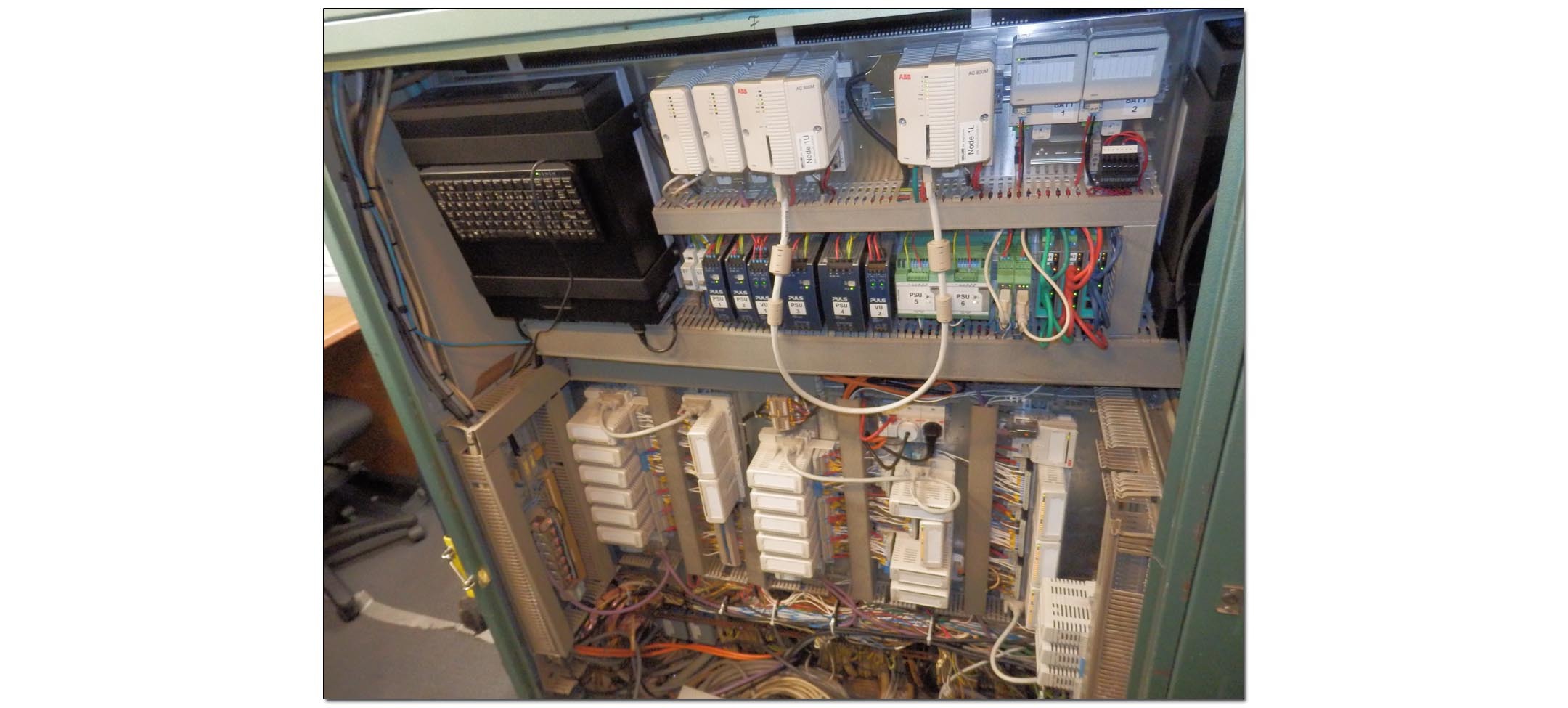

New Redundant AC800 Controllers with S800 I/O modules

This was a “turn-key” contract. Høglund project and commissioning engineers arranged :

Approbation with Factory Acceptance Test together with DNV-GL
Cable Pulling
Installation, Re-connection and I/O check
Harbour Acceptance Test with DNV-GL
Sea Acceptance Test with DNV-GL

After the sea-trial Høglund handed over the new system with all approved certificates needed.
